Performance lasting air-driven pump, flow rate and pressure can be stopped, the long life characteristics: using aircraft grade aluminum base
PTFE double sealed, chrome rod
DO3 valve pad, 1 / 4 NPT A, B and GA Interface
200 mesh filter
Dual 3 / 8 NPT air interface, input and pressure gauges
Compatible with the majority of hydraulic oil
Need a clean, dry air about 10 Bar powered
Without lubrication
Product Applications
Applied to machine the workpiece clamping, stretching, static pressure test¡¡
Advantages
Lasting, durable, no complex requirements of the pressure
Equipment integration, can be run at any time
No other equipment to satisfy your request can be immediately run
Low operating costs
The need to maintain the current position of energy consumption
Low maintenance costs
Anti-blast operation
Features
Single-trip run
Hydraulic ratio from 5:1 to 60:1, up to 340 Bar

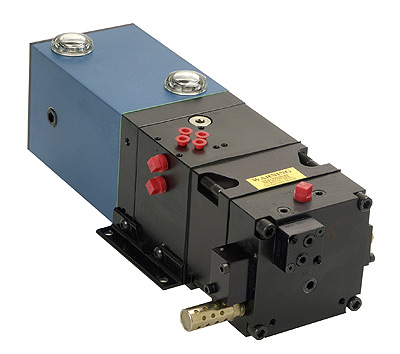

TASQ linear pump 100 x100x228 mm compact size, weight 5 kg
Polymerization dynamic seal and bearing standards
Easy to install in your existing memory, can also choose 0.65 - 2.61L memory
As high pressure oil, gas and explosive, toxic substances mixed in a series of health and safety problems, and so far in the coastal waters of Caspian Sea oil exploration and production with the required safety devices and automatic fault protection device. When the pressure fluctuations or high pressure, booster pumps that can produce hydraulic valves to shut down automatically. In the WBC, booster pump to the hydraulic accumulator in the inflatable device to start the blowout preventer. In the initial drilling, hydraulic booster pump can be provided to start the "closing or reducing expenditure system".
